• True continuous operation with thru put rates of 3 to 500 GPM
• Rotor tip speeds of 9,000 feet per minute
• Capable of 7 Hegman grind on many pigments
• Higher viscosity rates
• Variable speed drive, temperature readout

The CF series random path approach guarantees more work per pass providing better dispersions and emulsions.

This Kady Mill brings a continuous flow of power to your production line.

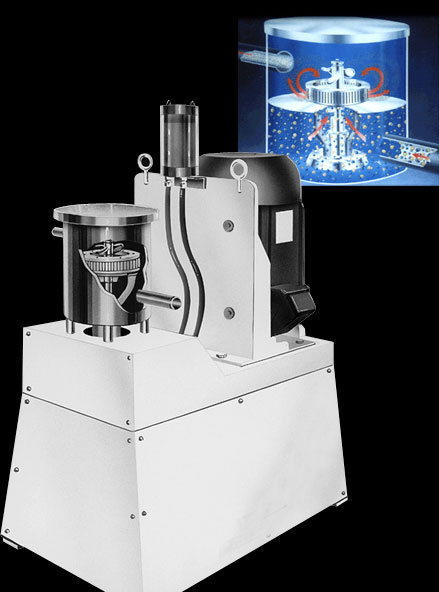

Talk about high energy. The rotor stator technology in our continuous flow mill really stirs things up. See for yourself.

TEST OUR DISPERSION MILL
Free where it matters the most right in your own existing production line. You can park this mighty mite in only 8 sq ft of floor space.

Get More Information:
This email address is being protected from spambots. You need JavaScript enabled to view it.
Or Call (USA) 1-800-367-5239

Continuous Operation and Performance

The CF series is engineered for true continuous operation, using a random-path approach that increases work per pass and improves overall dispersion efficiency. These mills maintain product homogeneity at higher viscosities and are capable of achieving fine grinds, often reaching 7 Hegman on many pigment systems, without excessive residence time. Variable-speed drives and temperature readouts allow operators to tune processing conditions for consistent product quality across production shifts.

Compact Footprint and Line Integration

Space-efficient design makes KADY continuous flow mills ideal for production lines with limited floor area. The unit’s compact footprint and straightforward piping connections simplify integration into existing process trains. Because the mill is designed to run continuously, it eliminates the batch handling steps associated with tank milling and reduces intermediate storage and handling labor while maintaining constant product properties.

Process Control and Material Versatility

KADY Continuous Flow Mills support a wide range of formulations and viscosities. The rotor-stator geometry and adjustable tip speed let engineers optimize shear and residence time to meet particle-size and dispersion targets. Built to accommodate pigment dispersions, emulsions, high-solids slurries, and viscous liquids, the CF series accepts a variety of materials and can be adapted with different rotor and stator configurations or materials of construction to address abrasion, corrosion, or sanitary requirements.

Free Test Drive and Validation

KADY offers a free on-site test drive so you can validate mill performance on your actual production line and with your real materials. Running a pilot through your process demonstrates true throughput, dispersion quality, heat generation, and cleaning characteristics under operating conditions that lab tests cannot fully reproduce. The test-drive option removes uncertainty, shortens approval cycles, and provides the data needed to specify the optimal configuration and motor sizing.

Installation, Commissioning, and Support

KADY supports installations with mechanical and electrical integration guidance, commissioning services, and operator training to ensure immediate, repeatable performance. Commissioning includes verification of flow rates, temperature control, and rotor/stator clearances as well as baseline performance documentation. Ongoing support covers spare parts, maintenance schedules, and remanufacturing options for wear components to maximize uptime and control lifetime costs.

Custom milling and mixing equipment, such as those developed by Kady International, offer significant benefits for continuous processing systems, particularly in industries that require high-efficiency and high-quality output. These mills are designed to integrate seamlessly into continuous production lines, providing a consistent, uninterrupted flow of material. By using rotor-stator technology, Kady's equipment ensures precise and uniform dispersion of solid materials into liquids, resulting in high-quality products with enhanced texture and consistency.

One of the key advantages of custom milling and mixing equipment in continuous processing is the reduction of downtime. Traditional batch processes often require equipment to stop, clean, and set up for the next batch, leading to inefficiencies and production delays. In contrast, continuous processing mills operate without such interruptions, allowing for a constant flow of product. This contributes to a significant increase in overall production capacity and efficiency.

Additionally, these mills are designed to handle a wide range of materials, from thick pastes to thin liquids, making them versatile for various applications. Customization options also allow for tailoring the equipment to specific processing needs, ensuring optimal results for unique product formulations.

By using custom milling and mixing solutions, manufacturers can achieve better control over their production process, improve product quality, and reduce operational costs. These benefits are particularly important in industries such as paints, coatings, adhesives, food, and pharmaceuticals, where consistency and high standards are critical. Ultimately, custom milling and mixing equipment support the long-term success of continuous processing operations by optimizing productivity and maintaining high-quality standards.

What Throughput Rates and Tip Speeds Are Available on the CF Series?

CF series mills operate across a throughput range of approximately 3 to 500 GPM with rotor tip speeds up to 9,000 ft/min to meet varied production demands.

Can The Continuous Flow Mill Handle High-Viscosity Materials?

Yes, the CF series is designed for higher viscosity formulations; rotor-stator geometry and variable speed control enable processing of viscous slurries and emulsions with effective feed and dispersion.

How Does the Free Test Drive Work and What Will It Prove?

The free test drive runs the mill in your existing production line with your product to demonstrate true throughput, dispersion quality, temperature behavior, and cleaning needs, providing the empirical data required for final specification.

What Are the Typical Integration Requirements for Inline Installation?

Integration typically requires minimal floor space, standard inlet/outlet piping, a suitable drive package and electrical supply, and process controls for flow and temperature; KADY provides detailed integration guidance and commissioning support.

We make our units efficiently and we understand that space is a valuable asset in the manufacturing world this is why we are pleased to say our continuous flow machines only take 8 square feet of your floor space. We also guarantee that once your product passes through our continuous flow mills you will have a completely homogenous product.

We have worked with a number of different industries over the years that work with a variety of different applications. Our goal is to work hard so you do not have to work harder than you should. We take your application in account with every product we sell in order to provide you with a product that will fit your process with minimal effort on your part.
